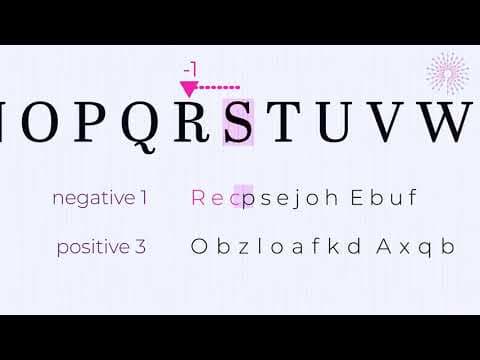

How to solve the Polymath Puzzle from the "Females Sing" lesson

How to read the deciphered scatter plot

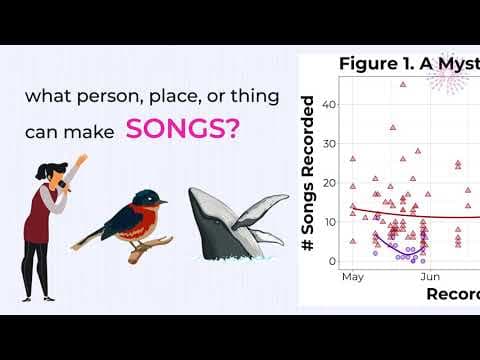

Polymath Puzzle Reveal—Is the graph about birds, spiders, whales,...?

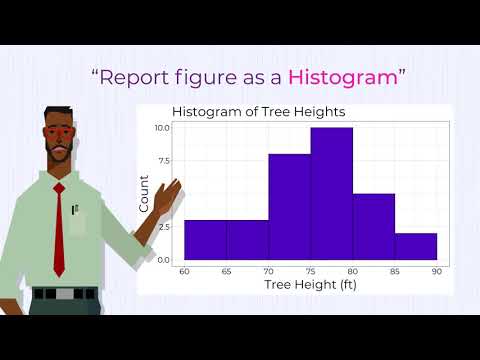

Scatter plots or histograms? Why data visualization is important

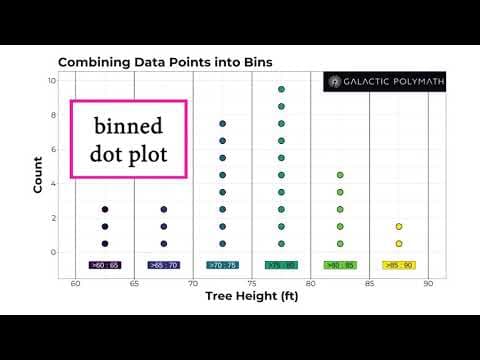

Connections between dot plots and histograms (with sound)

Getting to know your data: Counting barn swallow songs

Scientific Background: Female barn swallows sing

'Females singing to be heard' |Math| G5–8 & 9–12 (en-US)

Jennifer Gentry, PhD

Postdoc, Homeschool Teacher

Sarah Huneycutt, PhD

Greta Clinton-Selin

Education Program Coordinator

David Gammon, PhD

Professor

Lauryn Benedict, PhD

Jeannie Long, PhD

Presidential PAEMST 2020 Award-Winning Science Teacher

Greta Knudson MAT

STEAM Instructional Coach

Acknowledgments

#### Connection to Research
 This lesson allows students to explore the actual data from [the study](https://www.unco.edu/nhs/biology/about-us/benedict-lauryn/documents/publications/Wilkins_et_al_2020.pdf) and to hear from the study’s lead author to deepen data literacy and understanding of the scientific method. Students explore one of the primary figures in the study, a scatter plot (graph) showing different patterns of male and female singing output over the breeding season. Importantly, males sang much more than females and for a longer time (May-Aug, rather than just May). Thus, because males sing more frequently, if we assume (as has been common for birders and scientists until recently) that only males sing, your assumptions are reinforced more easily, because you are less likely to see a female sing.

During the peer review process, an anonymous scientist suggested that the scatter plot was not a good way to represent the data, instead suggesting that the authors should have displayed a histogram. In Parts 2 and 3 of the lesson, students aggregate (combine) the authentic study data in order to create a histogram. They must then interpret the data in both formats (deepening their understanding of how histograms and scatter plots relate to each other), and conclude which is a better way to demonstrate the study’s findings, explaining why.

For further reflection, students are then asked to synthesize what they have learned, along with new information presented to them. Why has female song been missed? Partially because of a pre-existing assumption that females don't sing, along with less common singing behavior in females. Why do females sing less? Because natural selection favors females who sing less. Females must sit on eggs for around 2 weeks, leaving them open to predation. If they were to sing as loudly and provocatively as males, they would attract predators which would eat them or their eggs, passing on no genes. Thus, natural selection has likely caused female song to be lost, simplified, or to be produced for short time periods during establishment of the breeding season in many species around the world.
#### Research Background
 ![studyThumbnail.png](https://storage.googleapis.com/gp-cloud/lessons/FemalesSing_en-US/study-paper.png)
[Link to the scientific study](https://www.unco.edu/nhs/biology/about-us/benedict-lauryn/documents/publications/Wilkins_et_al_2020.pdf)

This lesson is based on a recent study that describes female song in barn swallows for the first time. Barn swallows are one of the most common birds in the world and have been the subject of more than 1000 studies, yet published birding field guides and scientific papers have all failed to describe female song or they describe it incorrectly as being the same as male song (females have their own song type). This is an important oversight, because research on male bird song has informed a lot of theory in biology about how populations evolve through mate choice and competition involving vocal communication, and how new species form.

Ignoring the sounds females make may result from inherent biases. Since bird song became an area of scientific study in the 1800s, it was almost exclusively researched by white males in the Northern Hemisphere. Since women have become welcomed into all areas of science, and research institutions have focused more intent study in tropical regions of the world, studies have discovered that female song is the ancestral state (i.e. the ancestor of all living song birds had both singing males and females). Moreover, female song has not been entirely lost in most species. As in the barn swallow, natural selection has favored females that sing less often, and to have more concise songs that are often restricted to the pre-egg-laying part of the breeding season. This drop in female singing after egg-laying is thought to stem from trying not to draw predators to nests. Due to lack of study, the full function of song in competition among females, male mate choice, or other functions is not well understood in most species.

Further Reading:
- [Why We Didn't Know That Female Birds Sing](https://www.scientificamerican.com/article/why-it-took-so-long-to-appreciate-female-birds-songs/): Two authors of the study this lesson is based on discuss its broader implications for society and K-12 education.
- [Female birds sing. These biologists want you to listen.](https://www.washingtonpost.com/news/speaking-of-science/wp/2018/03/14/female-birds-sing-these-biologists-want-you-to-listen/) (features Drs. Karan Odom and Lauryn Benedict who worked on the study this lesson is based on).
    - If you're getting paywalled, try clearing your cache or opening the article in an incognito window.
- [Female bird song ignored by science, researchers say](https://www.australiangeographic.com.au/topics/science-environment/2019/04/female-bird-song-ignored-by-science-researchers-say/) (features Dr. Karan Odom and Dr. Naomi Langmore, who was influential in shifting scientists' thinking about female song)
- [Study reveals gender bias in bird song research and impact of women on science](https://phys.org/news/2020-08-reveals-gender-bias-bird-song.html) (features Dr. Karan Odom)

Background

#### Hidden Codes!
For students who finish early/ want to explore on their own at home, there is a code hidden in the lesson title. Decoding it will require them to gain new tech skills. It also gives them a glimpse at a huge realm of knowledge (binary and hexadecimal encoding of data), though they don’t need to fully understand it to solve the problem.

At the end of the worksheet, students can optionally learn to translate a hexadecimal code into a web address. Hexadecimals (hex) are a system for encoding information in computers. Search for a “hex to text converter.” Translate the Task # on the front page to get a secret web link.

This is a fun “tech-savviness/independence” growth activity. Students are asked to dive into a complex topic (hexadecimal encoding/decoding of text) without much support. But it’s actually not that hard. The goal is to encourage all students to not shut down when something sounds complicated and to learn how to think creatively and use the power of the web to their benefit.

They should do a web search for “hex to text converter”

1. [The top result will be something like this](http://www.unit-conversion.info/texttools/hexadecimal/), but almost any hex text converter will work
2. They have to type or cut and paste “6269742e6c792f6770686935” from the title page into the “Input Data” field
3. Choose “Hex to Text” to decode (the example converter defaults to encoding Text to Hex)
4. You “magically” get bit.ly/gphi5
5. If the student then copies/types that web address into the address bar, it will result in:
6. ![a cat gif](https://bit.ly/gphi5)

Bonus Content

#### Lead author and creative director:
Matt Wilkins, PhD

“I worked on this lesson for months, adapting my research into what will hopefully be a mind-expanding learning experience for pretty much all students, aged 11 and up! If you enjoy this lesson, please let us know–we want your feedback! This is the first of many, many Galactic Polymath lessons. Feel free to tag me ([@mattwilkinsbio](https://twitter.com/mattwilkinsbio)) and GP ([@galacticPM](https://twitter.com/galacticPM)) on Twitter with your experiences and student questions! And don’t forget to [sign up for our mailing list](https://bit.ly/getGPemails) to hear about what’s coming up next!”

#### Graphic Design Work:
Carver Lee, MA ([csalt design co.](https://www.csaltdesign.co/))

#### Development of Learning Assessments and Standards Alignment:
[Elaine Perignat, PhD](https://scholar.google.com/citations?user=G12SJQoAAAAJ&hl=en&oi=ao)

#### Video production courtesy of:
Stephanie Castillo (aka [Phuture Doctors](https://phuturedoctors.com/))

Credits

### Got suggestions or feedback?
#### We want to know what you think with this short 3 min. survey:
- [For Teachers](https://forms.gle/sZ1vMVZ3pXCRdXKw6)

### What others had to say about this lesson:
#### Teachers
> This is a fantastic lesson! I love how it combines actual research and allows the students the opportunity for analysis. I also love the fact that the peer review process is included in the explanation for the types of graphs used. This really allows students to see and understand the scientific process in action. Love it!!
> **Overall Rating:** 5/5
> **Student Engagement:** 4/5
> **Overall Learning:** 5/5
> **Would Recommend to Other Teachers:** 5/5
> **Student Level:** Grade 8
>
> –Sarah Huneycutt, Homeschool Teacher in Nashville, TN

#### Students
> I really enjoy this lesson! It is so engaging and fun!
>
> –11th Grader in Nashville, TN

> I think it looks like a very interactive lesson and it will hopefully be engaging and interesting to some students. It looks uncomplicated and it gives you all of the resources you will ever need for the lesson. The fact that it shows you how to create graphs and diagrams in the individual powerpoints is a good attribute in my opinion.
> -11th Grader in Savannah, GA

> My biggest takeaway from the lesson was the importance of choosing the right way to display data...I don’t have any negative feedback…I really liked the lesson and appreciated how it was interactive and not just a lecture, like many of my online classes have become.
>
> –11th Grader in Nashville, TN

Feedback

JobViz Career Connections

Challenging long-held assumptions about birdsong through data visualization

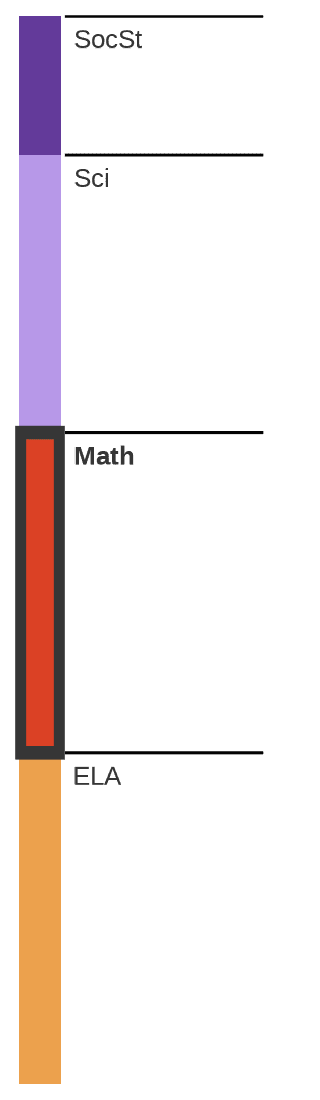

Math
